1.5 ESM-2-1/4
Edge Sphere Mount - Inside Corner
1.5-ESM-2-quarter

Designed to hold a Spherically Mounted Retro-Reflector, Theodolite Sphere, Photogrammetry Sphere, or other Spherical Type Target or Accessory for the purpse of locating inside corners or radius.

Description

1.5 ESM-2-1/4 Feature:

Stainless Steel R/C 40-44



Notes:

  • CAUTION The 1.5ESM-2-1/4 will not balance over an edge by itself. The 1.5 ESM-2-1/4 must be held in place or it will fall, possibly causing damage to the SMR.

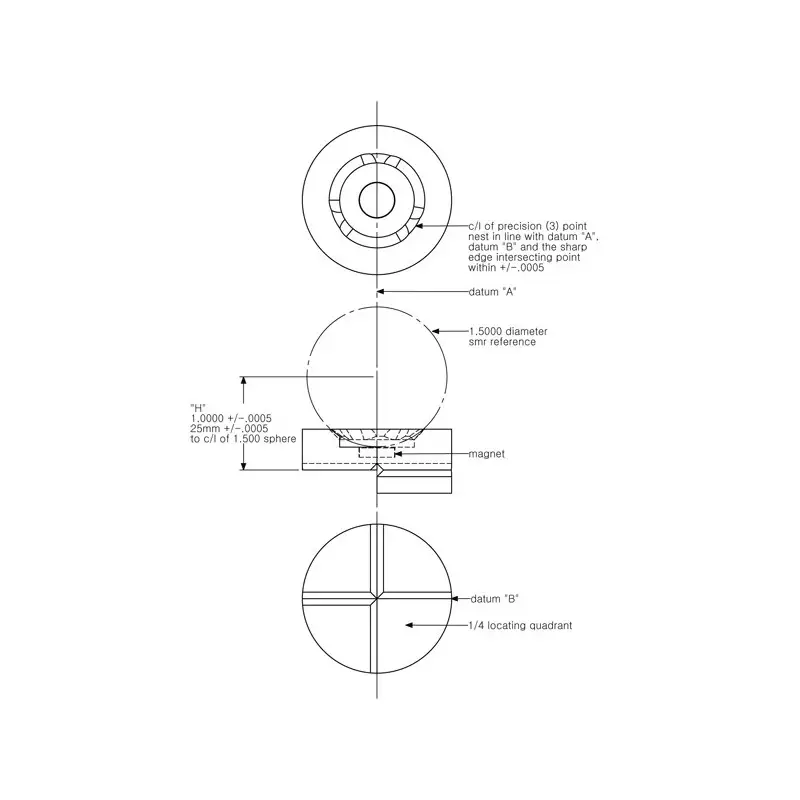

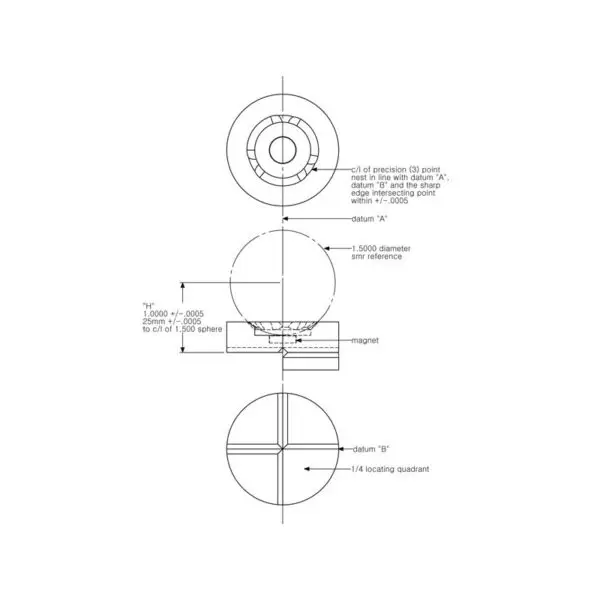

  • Intersection of datum “A” and datum “B” is a sharp edge critical locating surface. Handle with care.

Additional information

Weight 0.4 lbs
Dimensions 1.0 × 1.0 × 1.0 in

1.5 ESM-2-1/4 Feature:

Stainless Steel R/C 40-44



Notes:

  • CAUTION The 1.5ESM-2-1/4 will not balance over an edge by itself. The 1.5 ESM-2-1/4 must be held in place or it will fall, possibly causing damage to the SMR.
  • Intersection of datum “A” and datum “B” is a sharp edge critical locating surface. Handle with care.
  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$515.00

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
