$0.00

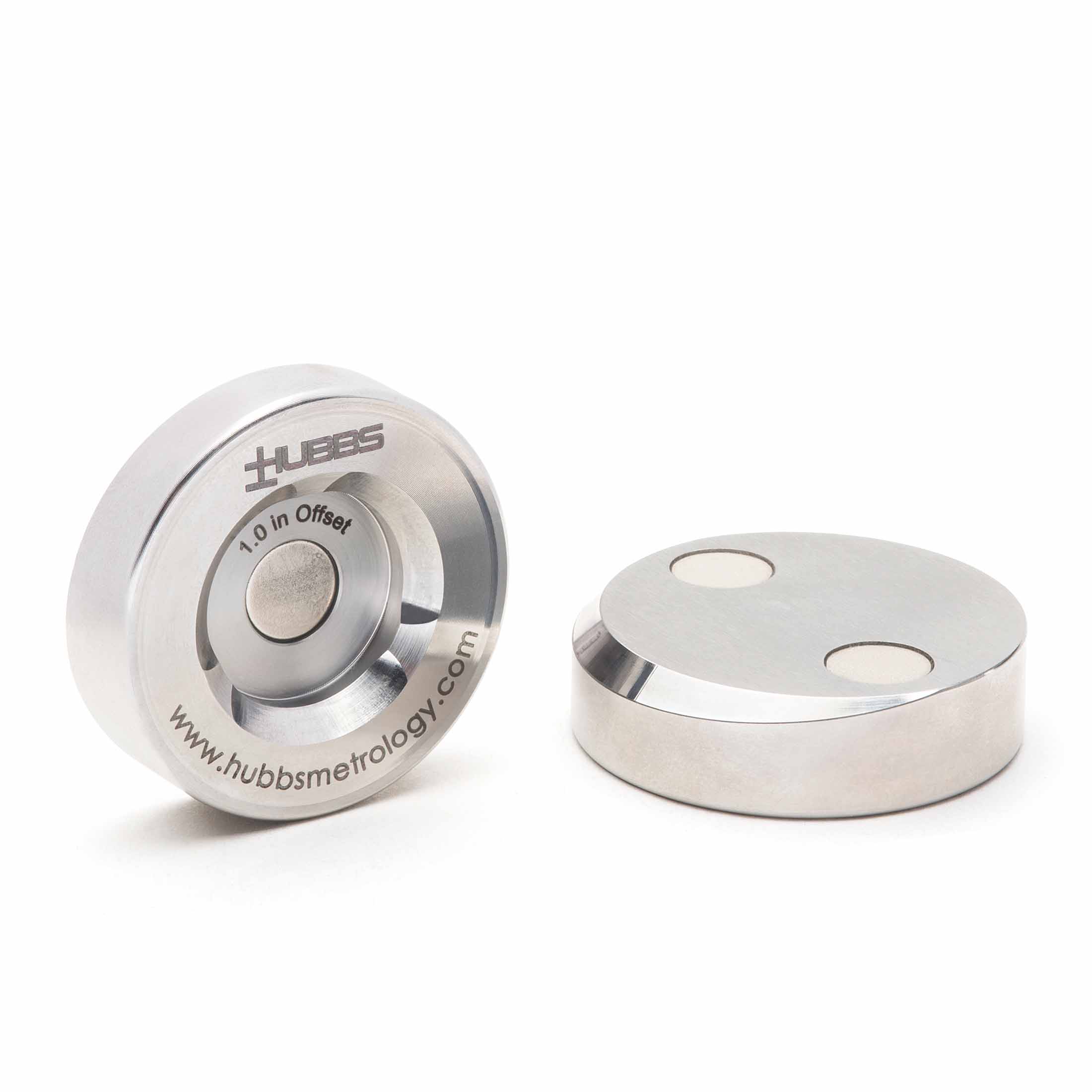

1.5 SSM/MB
Shankless Sphere Mount / Magnetic Base
1.5 SSM MB 1
1 5 SSMMB

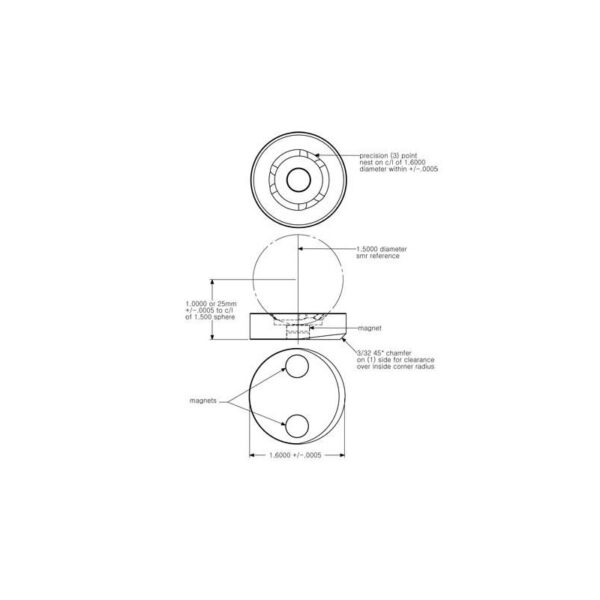

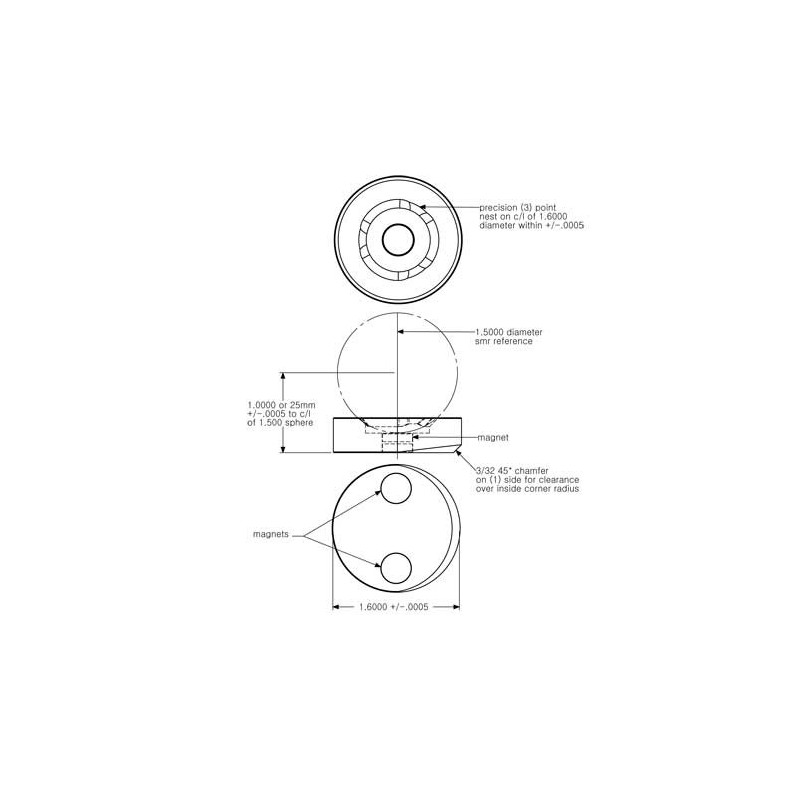

Designed to hold a Spherically Mounted Retro-Reflector, Theodolite Sphere, Photogrammetry Sphere, or other Spherical Type Target or Accessory for a critical height and centerline. The edge may be used to contact inside edges to give a value of .800 away. Also when the sphere mount needs to be held in place magnetically.

Description

1.5 SSM/MB Features:

  • Stainless Steel R/C 40-44
  • Appropriate number of magnets on base for securing to flat steel surfaces.



Note:

For non-critical applications, we suggest using a 1.5 Sphere Mount Hard Coat / Magnetic Base (1.5 SM-HC/MB) or a 1.5 Sphere Mount Drift Nest (1.5 SM-DN).

Additional information

Weight 0.35 lbs
Dimensions 1.0 × 1.0 × 1.0 in

1.5 SSM/MB Features:

  • Stainless Steel R/C 40-44
  • Appropriate number of magnets on base for securing to flat steel surfaces.



Note:

For non-critical applications, we suggest using a 1.5 Sphere Mount Hard Coat / Magnetic Base (1.5 SM-HC/MB) or a 1.5 Sphere Mount Drift Nest (1.5 SM-DN).

  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$225.00
