.5 SM
Sphere Mount

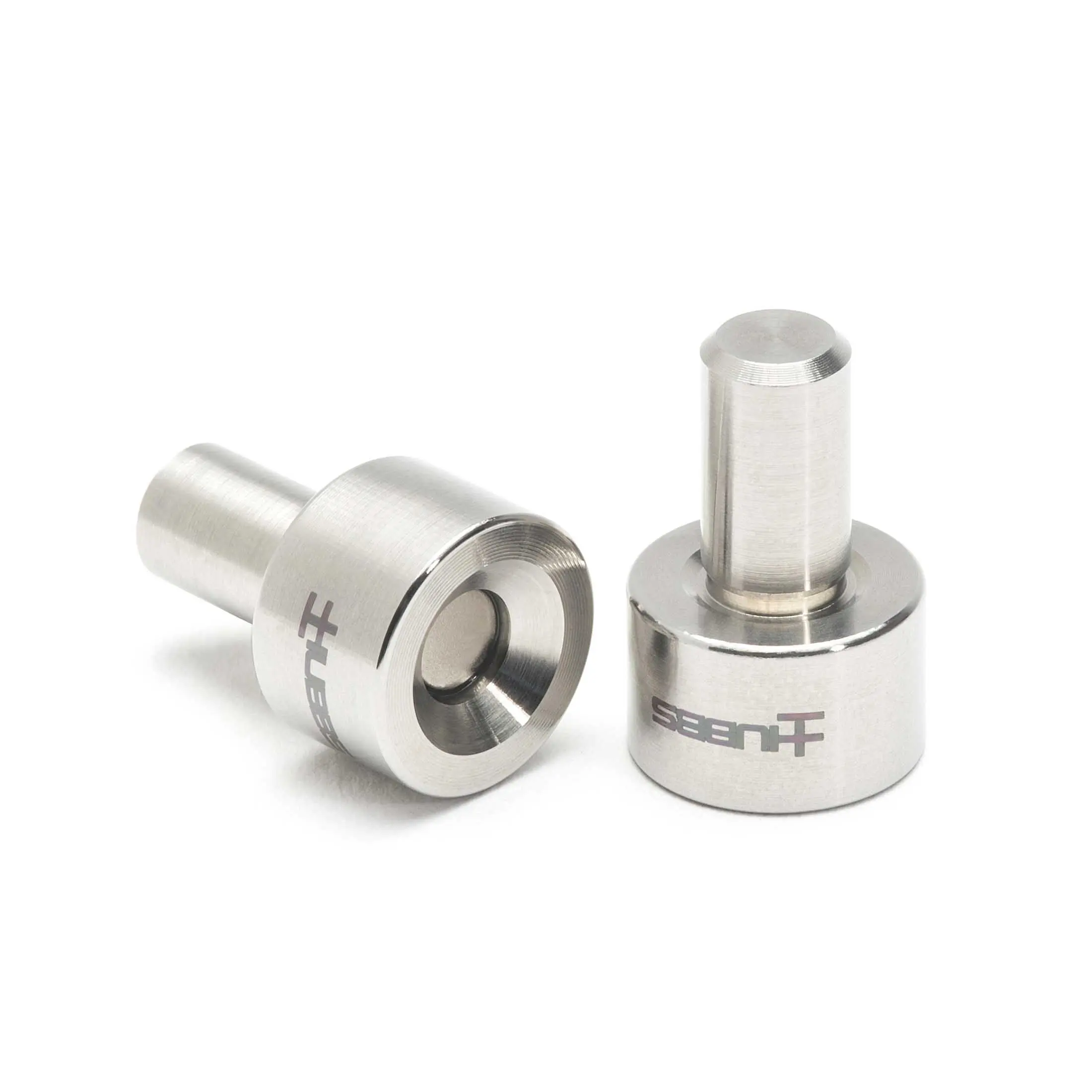

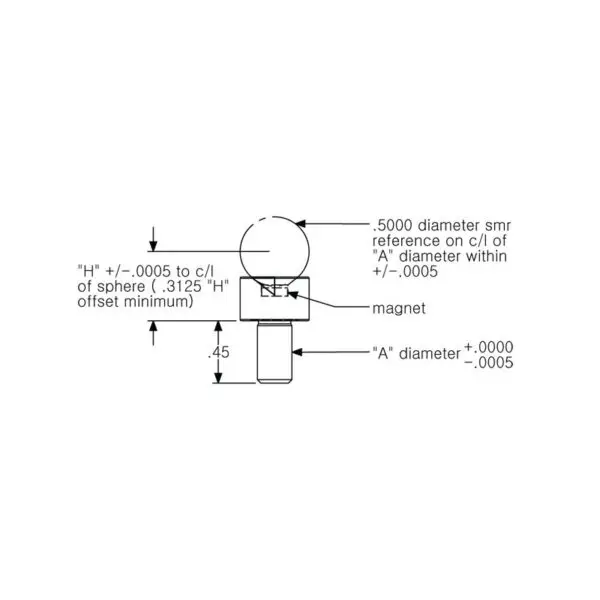

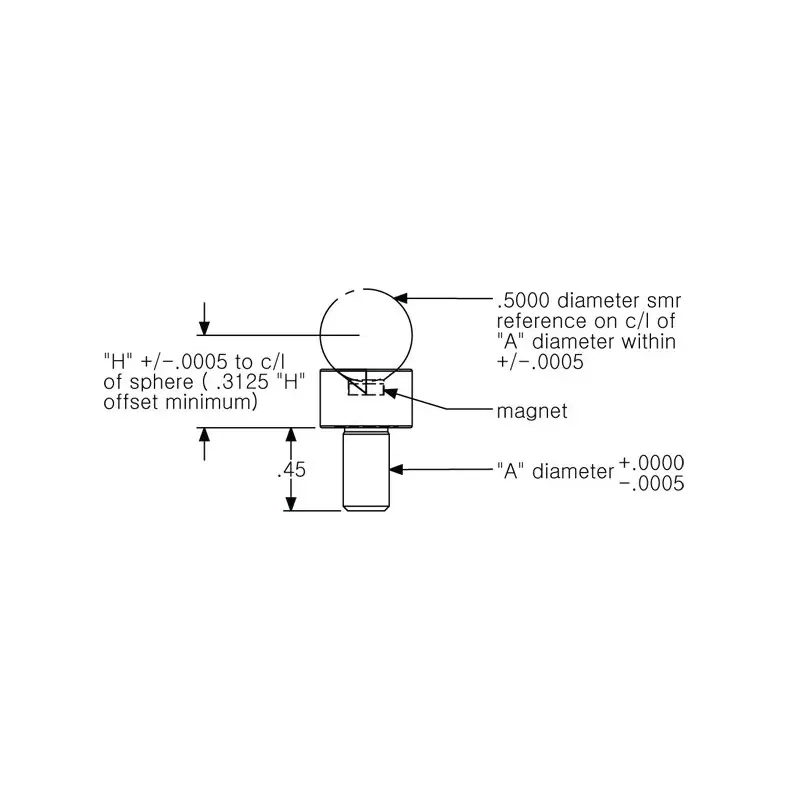

Designed to hold a .5000 Spherically Mounted Retro-Reflector or other spherical type target or accessory on centerline of a hole and critical offset.

Description

.5 SM Features:

  • 1144 Steel, Black Oxide Finish (Standard)
  • Stainless Steel option (for more corrosive environments)



Note:

For a .3125 offset only, the minimum shank possible with a magnetic insert is a .2500 shank. For shank sizes smaller than .2500 with a .3125 offset, use SMLR design or they will be non-magnetic.

Additional information

Weight .10 lbs
Dimensions 1.0 × 1.0 × 1.0 in

.5 SM Features:

  • 1144 Steel, Black Oxide Finish (Standard)
  • Stainless Steel option (for more corrosive environments)



Note:

For a .3125 offset only, the minimum shank possible with a magnetic insert is a .2500 shank. For shank sizes smaller than .2500 with a .3125 offset, use SMLR design or they will be non-magnetic.

  • Part Number
  • Hubbs Part Builder
    • For a .3125 offset only, the minimum shank possible with a magnetic insert is a .2500 shank.
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$92.50

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
