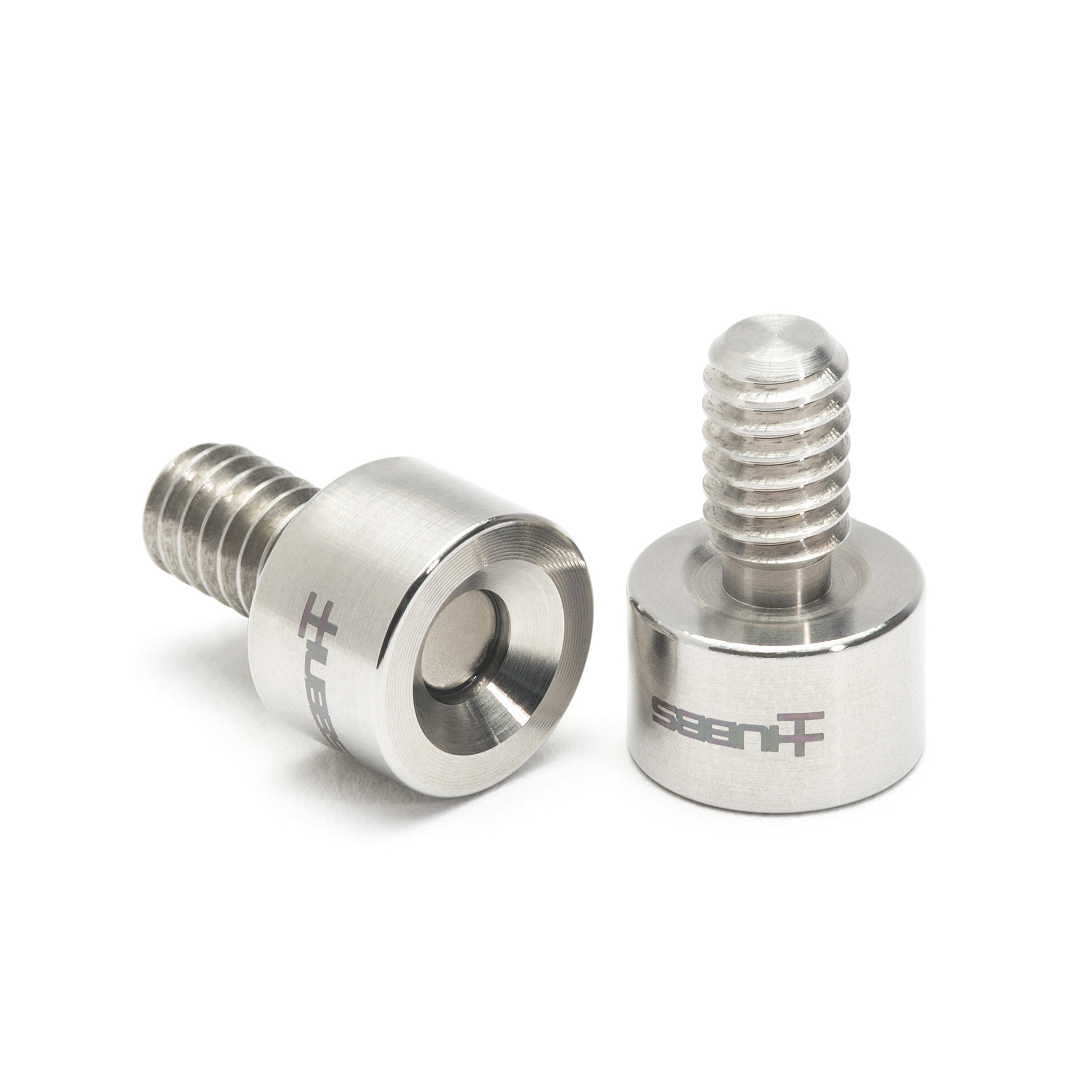

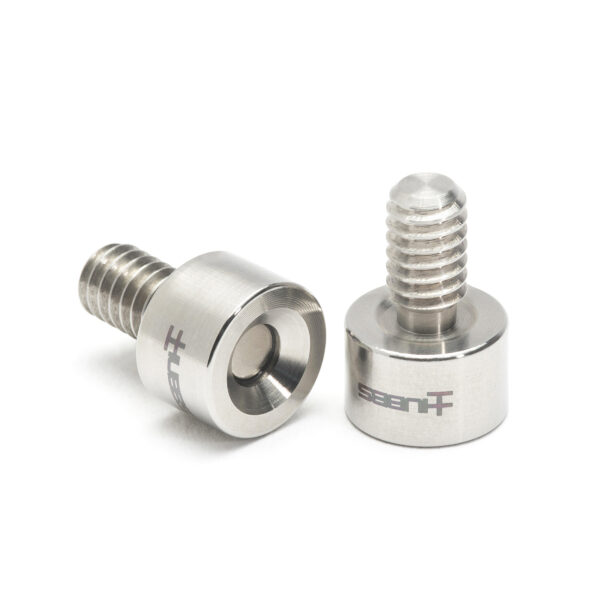

.5 SMT

Sphere Mount Threaded

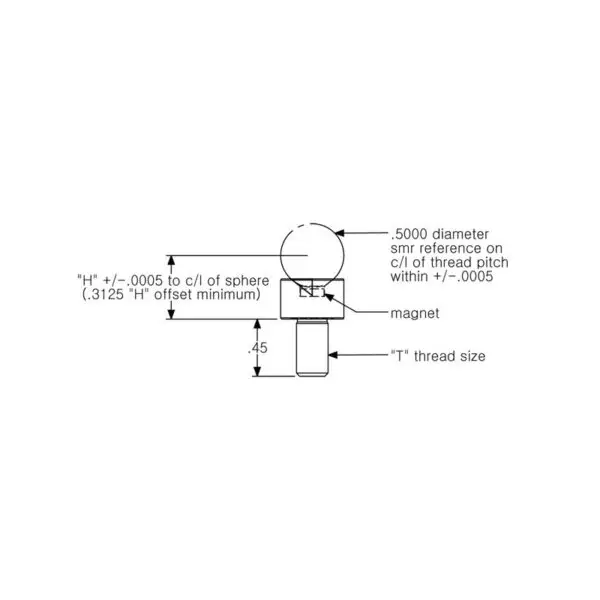

Designed to hold a .5 Spherically Mounted Retro-Reflector, or other Spherical Type Target or Accessory on a centerline of a threaded hole and critical offset.

Description
Additional information

Description

.5 SMT Features:

1144 Steel, Black Oxide Finish (Standard)
Stainless Steel option (for more corrosive environments)

Note:

M8 or 5/16″ thread are the smallest size with .3125 offset that can be magnetic.

Additional information

Weight	0.10 lbs
Dimensions	1.0 × 1.0 × 1.0 in

.5 SMT Features:

1144 Steel, Black Oxide Finish (Standard)
Stainless Steel option (for more corrosive environments)

Note:

M8 or 5/16″ thread are the smallest size with .3125 offset that can be magnetic.

Part Number
Hubbs Part Builder

*H To Centerline

*T Thread Size

Non-Magnetic with .3125" offset

*Material

1144 Steel

Stainless Steel
Product Certification

Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

Certify Product

$143.00
