.875 SM
Sphere Mount

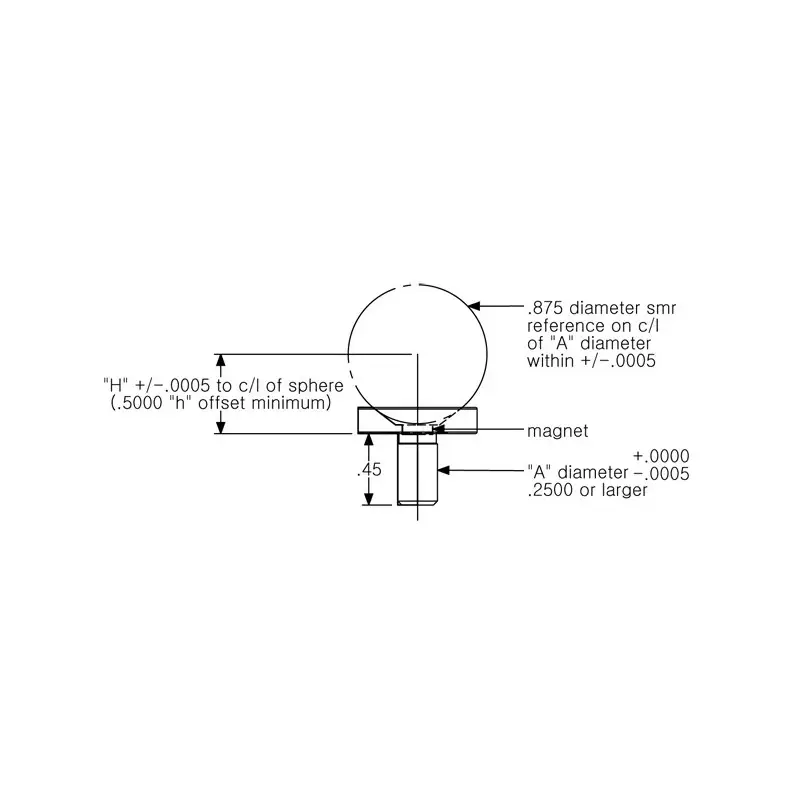

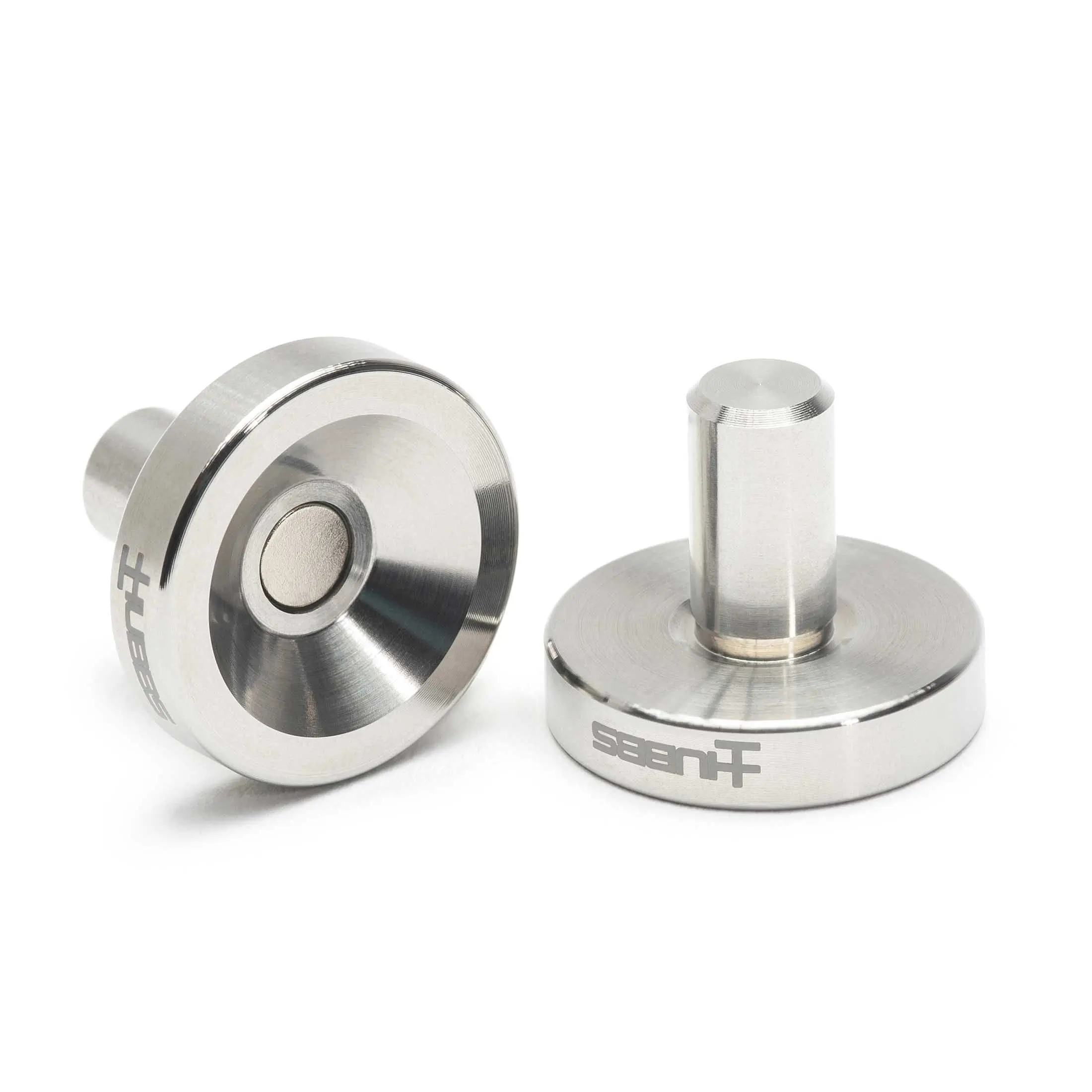

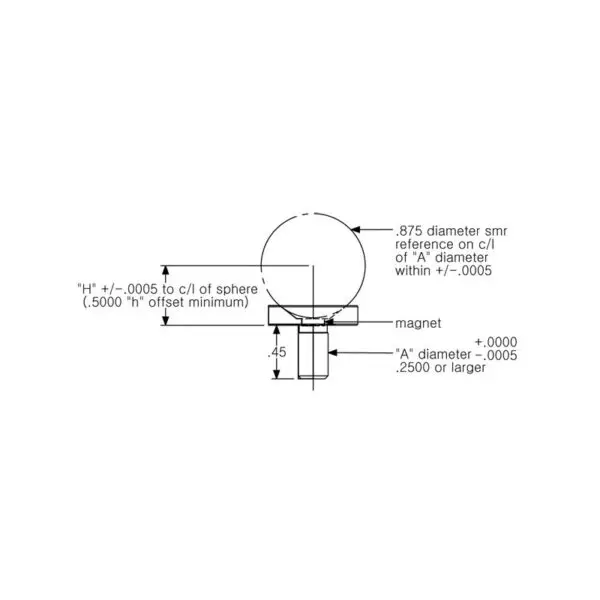

Designed to hold a .8750″ Spherically Mounted Retro-Reflector or other spherical type target or accessory on centerline of a hole and critical offset.

Description

.875 SM Features:

  • 1144 Steel, Black Oxide Finish (Standard)
  • Stainless Steel option (for more corrosive environments)



Note:

  • The “H” offset must be .5000″ minimum.
  • An “A” diameter smaller than a 6mm shank will be non-magnetic.

Additional information

Weight 0.15 lbs
Dimensions 1.0 × 1.0 × 1.0 in

.875 SM Features:

  • 1144 Steel, Black Oxide Finish (Standard)
  • Stainless Steel option (for more corrosive environments)



Note:

  • The “H” offset must be .5000″ minimum.
  • An “A” diameter smaller than a 6mm shank will be non-magnetic.
  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$117.00

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
