BP
Ball Point
BP-Ball-Point

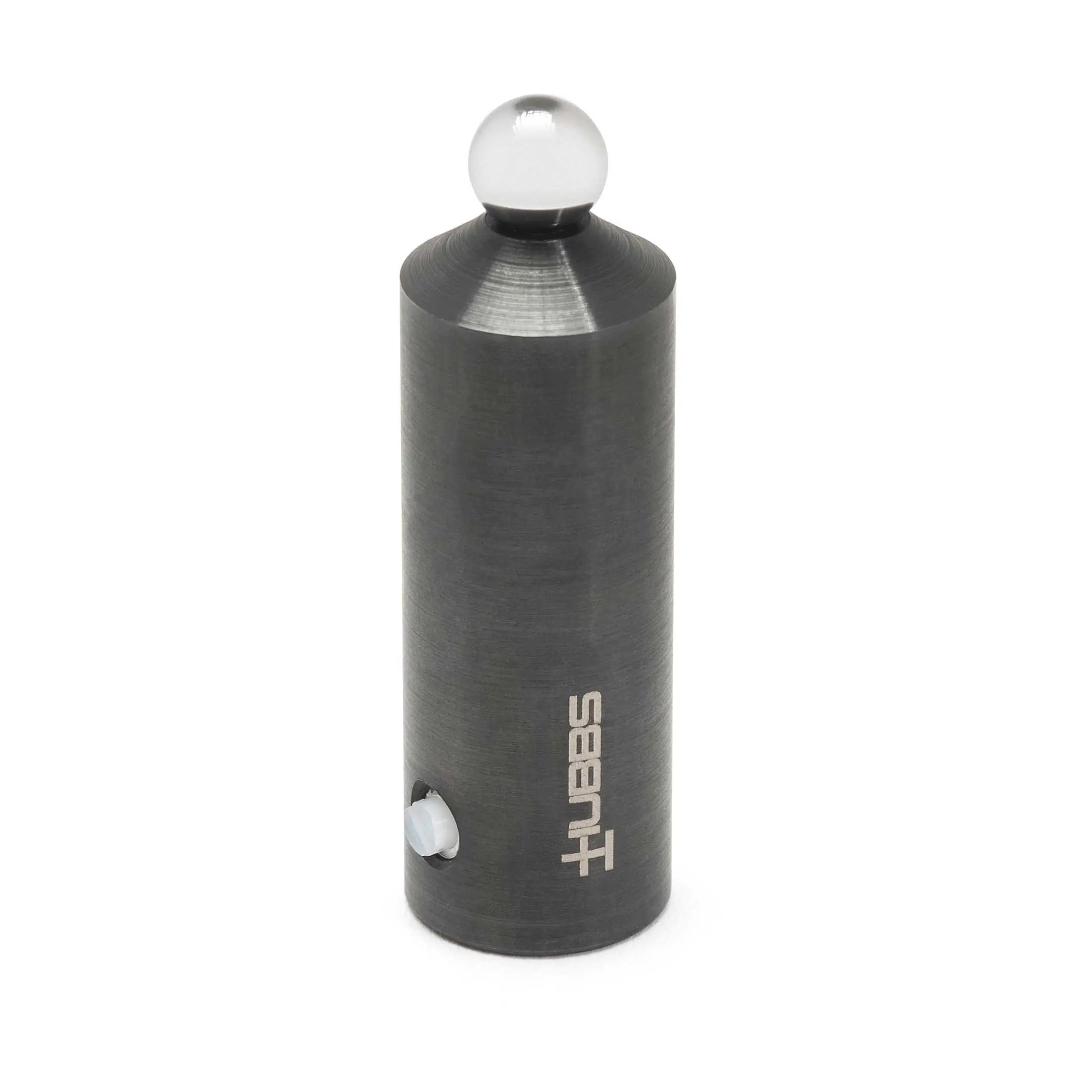

Can be screwed onto the shank end of a Bar Extension to generate a spherical radius while locating the ball at the top edge of a hole.

Description

BP Feature:

1144 Steel, Black Oxide Finish (Standard)



BP Notes:

  • Ball is bonded. Handle with care.

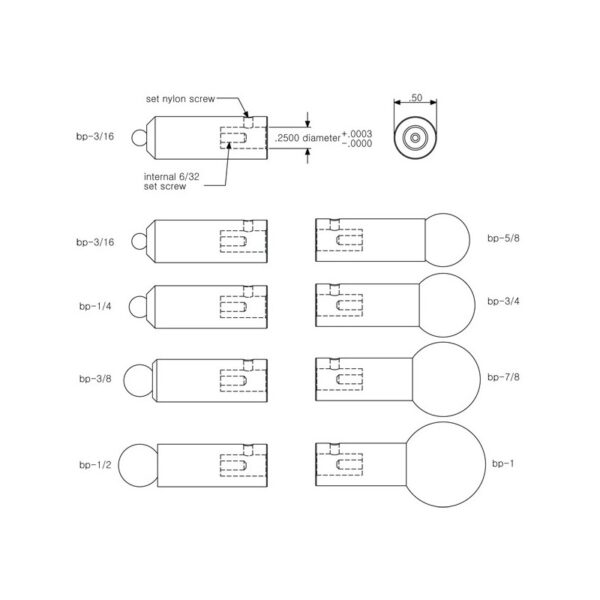

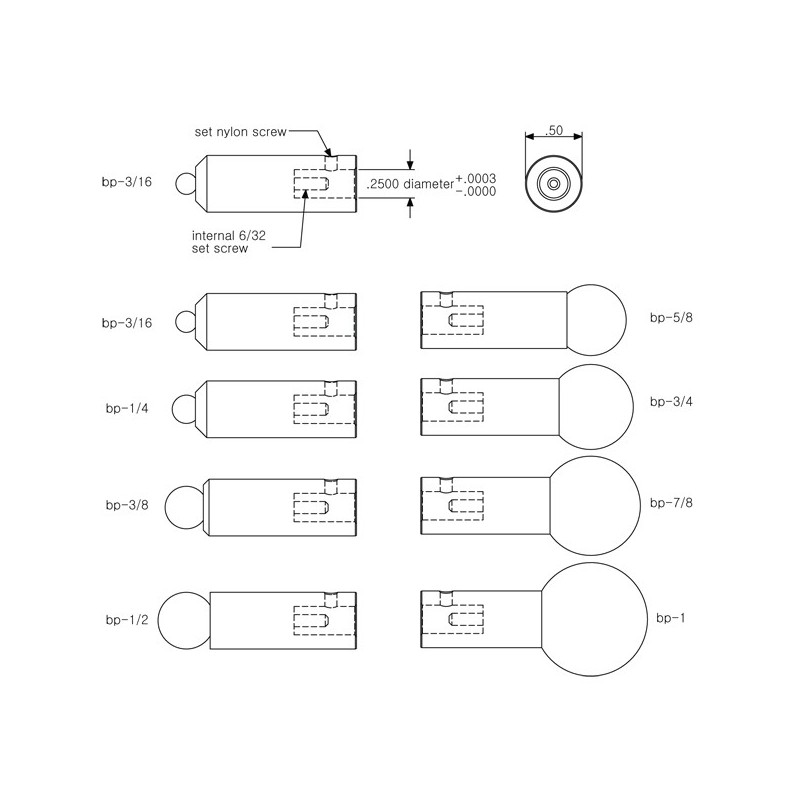

  • Balls are on centerline of .2500” bore within+/-.0005.
  • Length to centerline of ball is non-critical.

Additional information

Weight 0.3 lbs
Dimensions 1.0 × 1.0 × 1.0 in

BP Feature:

1144 Steel, Black Oxide Finish (Standard)



BP Notes:

  • Ball is bonded. Handle with care.
  • Balls are on centerline of .2500” bore within+/-.0005.
  • Length to centerline of ball is non-critical.
  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$185.00

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
