HDLBV-2495-3125-.250-STD

Description

HDLBV Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

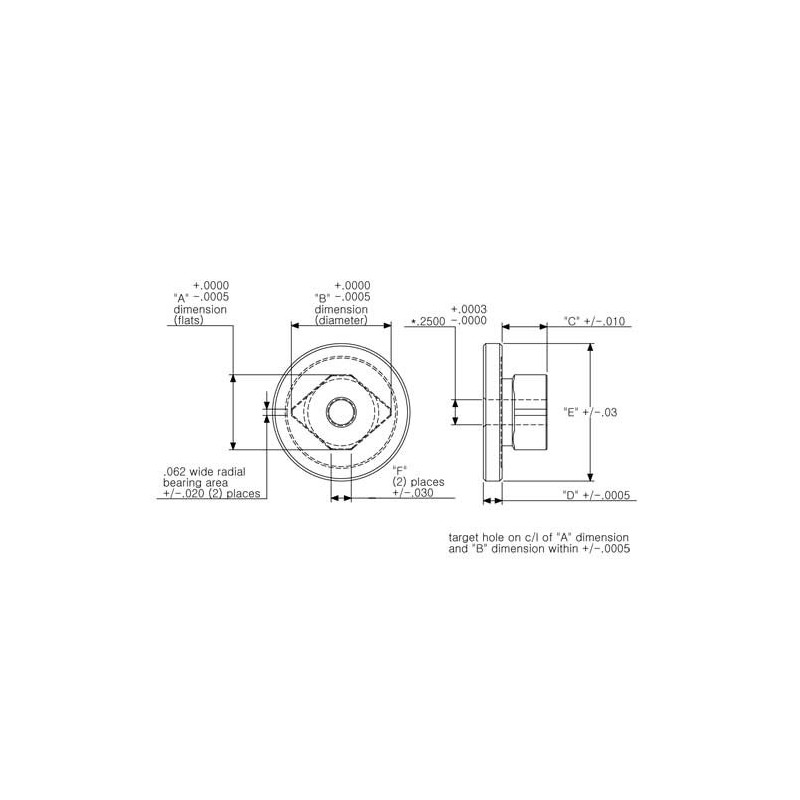

  • .1250 hole when “A” dimension (flats) is less than .3120
  • When combinations of “B” & “C” dimensions exceeds .900″ (overall length) critical bore will only be .550″ deep from top of head surface. The remainder of length will be relieved (oversize). If critical bore is required in full part contact us.

Additional information

Weight 0.3 lbs
Dimensions 1.0 × 1.0 × 1.0 in
HDLBV

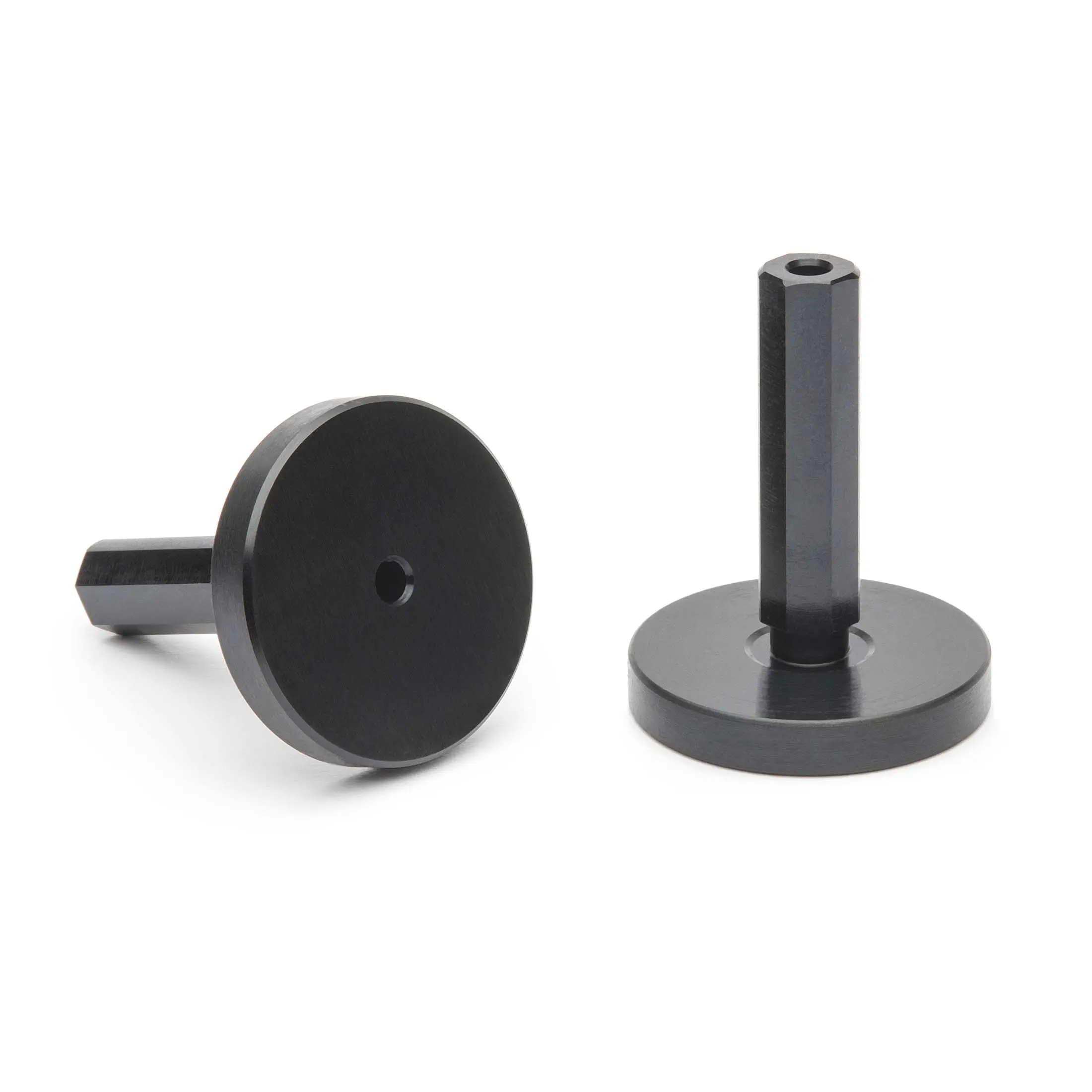

Headed Diamond Linear Bushing Variable

Allows the end user to custom design the bushing for a specific need.

We're Sorry
Due to the vast number of options & configurations
please contact us to work through your specific needs.

Please call
636-285-4388
for more information.

HDLBV Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

  • .1250 hole when “A” dimension (flats) is less than .3120
  • When combinations of “B” & “C” dimensions exceeds .900″ (overall length) critical bore will only be .550″ deep from top of head surface. The remainder of length will be relieved (oversize). If critical bore is required in full part contact us.
