Description

LBV Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

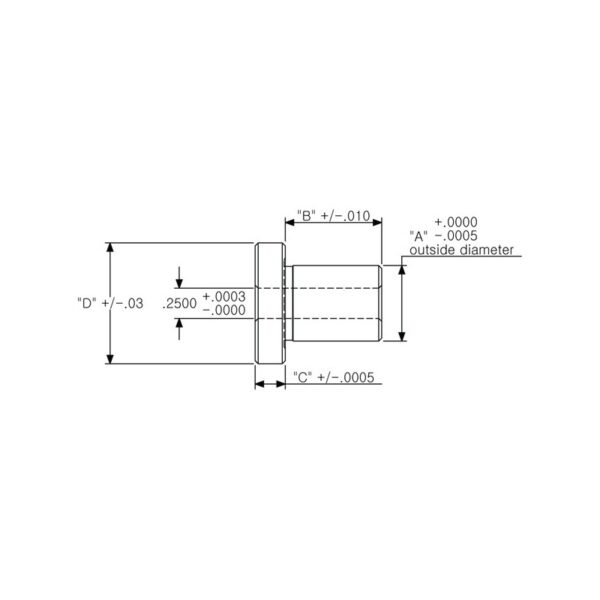

  • For head diameter measurement, add .3700″ to “A” diameter.
  • When combinations of “B” & “C” dimensions exceeds .9000″ (overall length) critical bore will only be .5500″ deep from top of head surface. The remainder of length will be relieved (oversize). If critical bore is required in full part, contact us.

Additional information

Weight 0.3 lbs
Dimensions 1.0 × 1.0 × 1.0 in
LBV

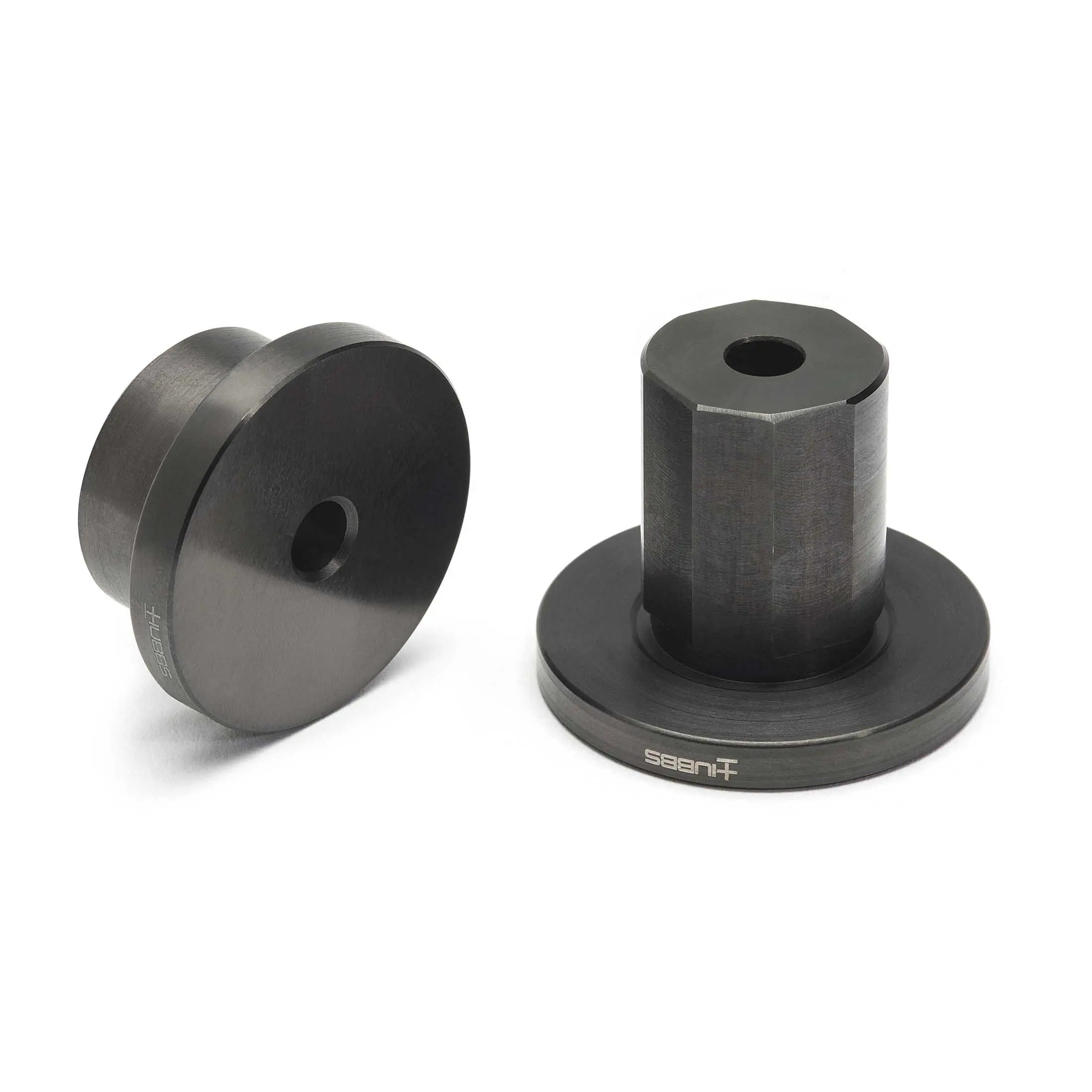

Linear Bushing Variable

Used for adapting standard .2500″ or .1250″ shank targets to odd-sized holes. (Allow .2000″ for height difference) Many nominal fractional sizes in stock.

We're Sorry
Due to the vast number of options & configurations
please contact us to work through your specific needs.

Please call
636-285-4388
for more information.

LBV Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

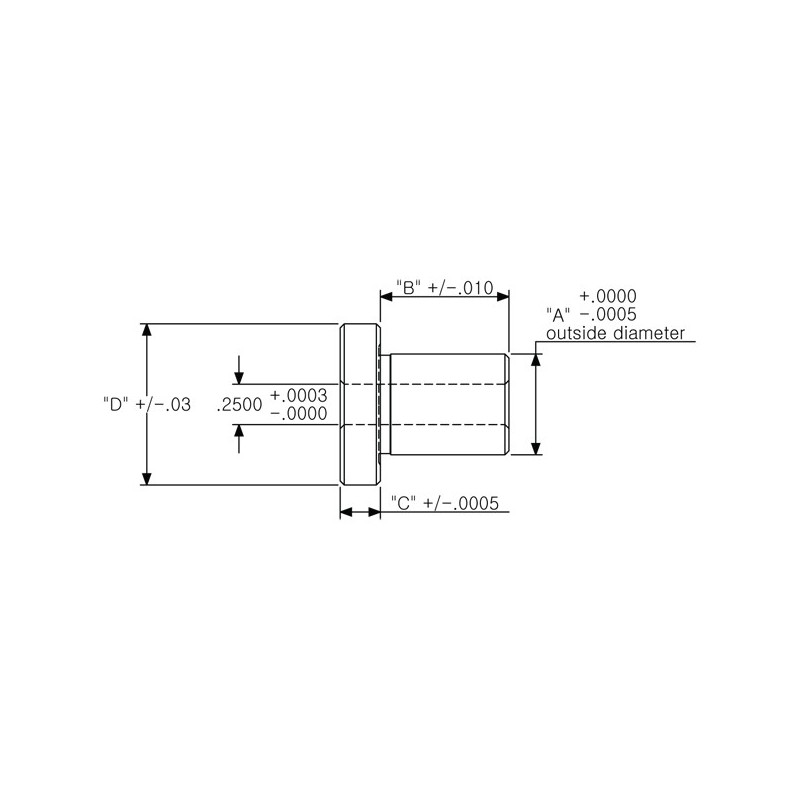

  • For head diameter measurement, add .3700″ to “A” diameter.
  • When combinations of “B” & “C” dimensions exceeds .9000″ (overall length) critical bore will only be .5500″ deep from top of head surface. The remainder of length will be relieved (oversize). If critical bore is required in full part, contact us.
