TB

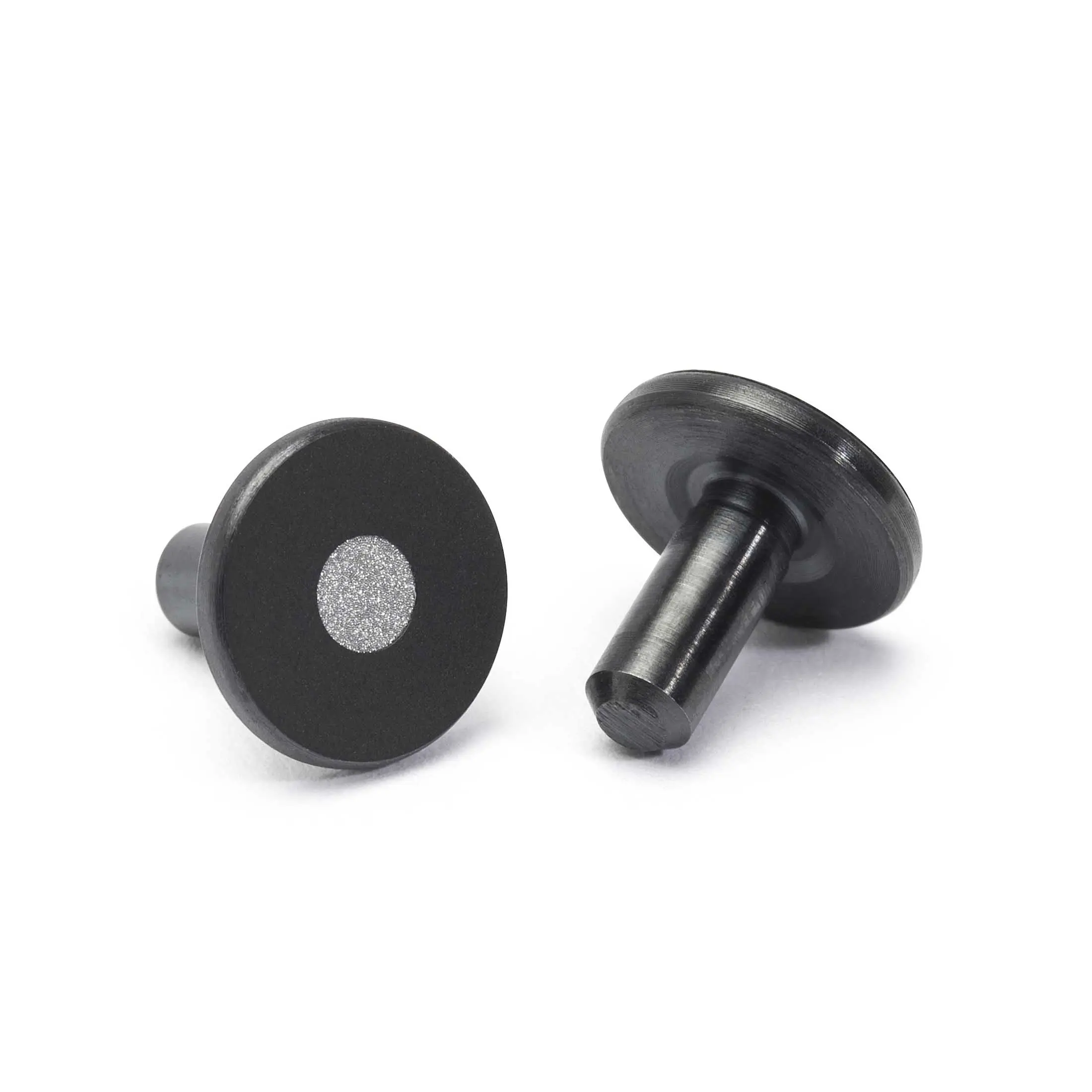

Target Button

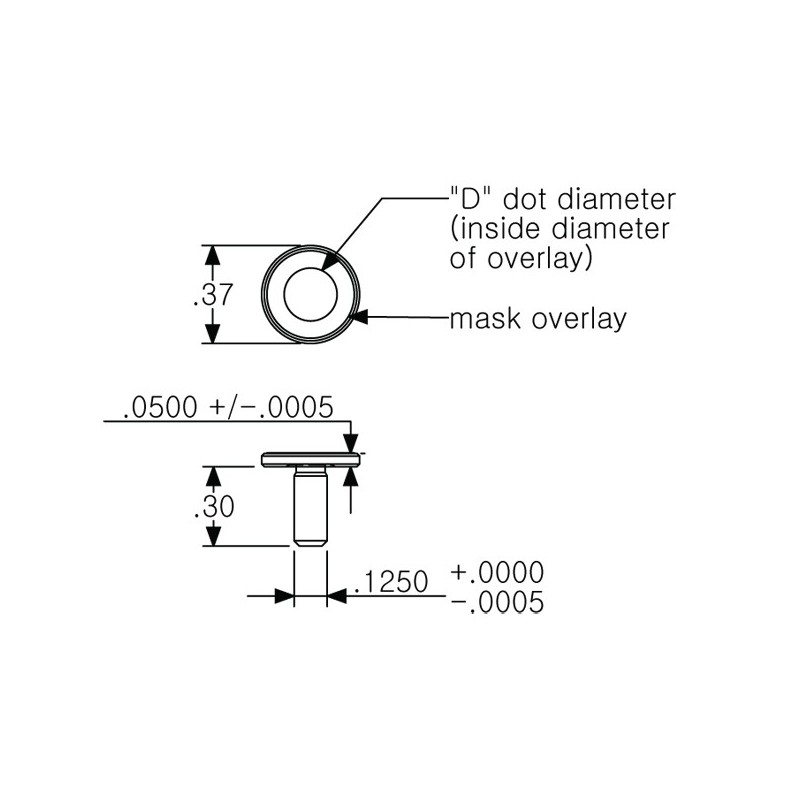

Used with photogrammetry for targeting .125 diameter tooling holes. For any other requirements, refer to TBRV design.

Description

TB Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

  • Target dots are located within +/-.0005 on height (unless otherwise noted) or +/-.0005 in relationship of C/L of shank or body.
  • Can only select dot diameter.

Additional information

Weight 0.5 lbs
Dimensions 1.0 × 1.0 × 1.0 in

TB Feature:

1144 Steel, Black Oxide Finish (Standard)



Notes:

  • Target dots are located within +/-.0005 on height (unless otherwise noted) or +/-.0005 in relationship of C/L of shank or body.
  • Can only select dot diameter.
  • Part Number
  • Hubbs Part Builder
    Product Certification

    Certified precision documentation provides certified, serialized, and NIST traceable critical dimensions.

$13.75

Learn More About Product Certification
Click Here

Benefits of Certification

Affirms product has passed specific performance and quality assurance test

Verifies that in use product are still within specification

Provides traceability

Reduces In-house certification cost and time
