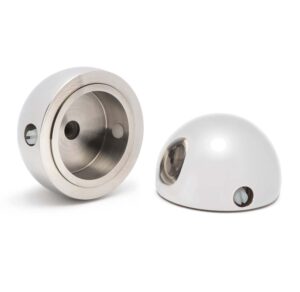

Engineered for efficiency, the HUBBS sphere fit adaptor (SFA) is an essential component for locating and specifying accurate measurements for hidden or hard-to-reach features with precision.
The sphere fit adaptor, when coupled with laser tracker sphere mounts, bar extensions, and tooling balls help generate a sphere-fit routine. This setup allows the user to center a conical nest around a construction/tooling ball so software can calculate the center of a hidden point. This is critical when a single precise reference point is needed to align, inspect, and maintain accuracy in complex assemblies or large-scale metrology setups.
The laser tracker sphere adapter features a 6-32 set screw to securely fasten to BEX bar extensions, so the user can precisely position upon a ½” tooling ball to ensure reliable performance in metrology applications; saving valuable time and reducing potential for costly errors. Trust HUBBS for innovative, quality-driven solutions.
